11. 6. Initial-consultation-specific information module

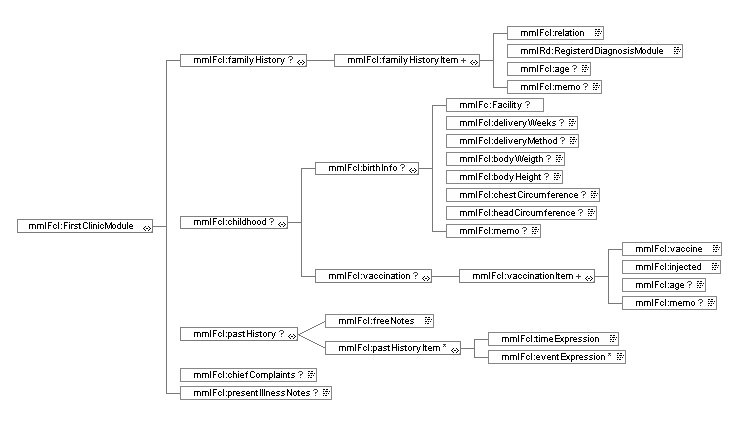

Element structure



Namespace declaration

Namespace declaration of this module is as follows.

xmlns:mmlFcl="http://www.medxml.net/MML/ContentModule/FirstClinic/1.0"

Element list



Element

Attribute

Data type

Occurrence

Table

1.

mmlFcl:FirstClinicModule









1.1.

mmlFcl:familyHistory





?



1.1.1.

mmlFcl:familyHistoryItem





+



1.1.1.1.

mmlFcl:relation



string



MML0020

1.1.1.2.

mmlRd:RegisteredDiagnosisModule









1.1.1.3.

mmlFcl:age



timePeriod

?



1.1.1.4.

mmlFcl:memo



string

?



1.2.

mmlFcl:childhood





?



1.2.1.

mmlFcl:birthInfo





?



1.2.1.1.

mmlFc:Facility





?



1.2.1.2.

mmlFcl:deliveryWeeks



timePeriod

?



1.2.1.3.

mmlFcl:deliveryMethod



string

?



1.2.1.4.

mmlFcl:bodyWeight



decimal

?







mmlFcl:unit

string

#REQUIRED



1.2.1.5.

mmlFcl:bodyHeight



decimal

?







mmlFcl:unit

string

#REQUIRED



1.2.1.6.

mmlFcl:chestCircumference



decimal

?







mmlFcl:unit

string

#REQUIRED



1.2.1.7.

mmlFcl:headCircumference



decimal

?







mmlFcl:unit

string

#REQUIRED



1.2.1.8.

mmlFcl:memo



string

?



1.2.2.

mmlFcl:vaccination





?



1.2.2.1.

mmlFcl:vaccinationItem





+



1.2.2.1.1.

mmlFcl:vaccine



string





1.2.2.1.2.

mmlFcl:injected



boolean





1.2.2.1.3.

mmlFcl:age



timePeriod

?



1.2.2.1.4.

mmlFcl:memo



string

?



1.3.

mmlFcl:pastHistory





?



1.3.1.

mmlFcl:freeNotes



string





1.3.2.

mmlFcl:pastHistoryItem





*



1.3.2.1.

mmlFcl:timeExpression



string





1.3.2.2.

mmlFcl:eventExpression



string

*



1.4.

mmlFcl:chiefComplaints



string

?



1.5.

mmlFcl:presentIllnessNotes



string

?





Occurrence; blank: 1 appearance without fail, ?: 0 or 1 appearance, +: 1 or more appearances, *: 0 or more appearances

#REQUIRED: Required attribute, #IMPLIED: Omissible attribute



Element explanation

1.mmlFcl:FirstClinicModule

Description: initial-consultation-specific information

1.1.mmlFcl:familyHistory

Description: family history information

Omission: allowed

1.1.1.mmlFcl:familyHistoryItem

Description: element for repetition

Omission: not allowed

Repetition: allowed. If there are multiple family members to be described, the element should be repeated. Furthermore, if a family member has multiple diseases, the element should also be repeated.

1.1.1.1.mmlFcl:relation

Description: relation code. Use table MML0020.

Data type: string

Omission: not allowed

Example: mother-in-law (If the relation is "in-law", put "InLaw" at the end.)

<mmlFcl:relation>motherInLaw</mmlFcl:relation>

1.1.1.2.mmlRd:RegisteredDiagnosisModule

Description: diagnosis information. Refer to the MML module (Diagnosis record information) for the structure.

Omission: not allowed

Example: died of gastric cancer on August 25,1989

<mmlRd:RegisteredDiagnosisModule>

<mmlRd:diagnosis mmlRd:code = "C169-.007"

mmlRd:system = "ICD10">gastric cancer</mmlRd:diagnosis>

<mmlRd:endDate>1989-08-25</mmlRd:endDate>

<mmlRd:outcome>died</mmlRd:outcome>

</mmlRd:RegisteredDiagnosisModule>

1.1.1.3.mmlFcl:age

Description: age of a family member at disease onset

Data type: timePeriod Format: PnYnMnDTnHnMnS
Normally PnY is acceptable except for infant.

Omission: allowed

Example: at the age of 40

<mmlFcl:age>P40Y</mmlFcl:age>



Example: 1 year and 3 months after birth

<mmlFcl:age>P1Y3M</mmlFcl:age>



Example: 3 months after birth

<mmlFcl:age>P3M</mmlFcl:age>

1.1.1.4.mmlFcl:memo

Description: memo

Data type: string

Omission: allowed

Document layout: use of XHTML is allowed.

1.2.mmlFcl:childhood

Description: childhood information

Omission: allowed

1.2.1.mmlFcl:birthInfo

Description: birth information

Omission: allowed

1.2.1.1.mmlFc:Facility

Description: birth facility. Refer to the MML common format (Facility information format) for the structure.

Omission: allowed

1.2.1.2.mmlFcl:deliveryWeeks

Description: delivery weeks

Data type: timePeriod Format: PnW

Omission: allowed

Example: 40 weeks

<mmlFcl:deliveryWeeks>P40W</mmlFcl:deliveryWeeks>

1.2.1.3.mmlFcl:deliveryMethod

Description: delivery method. The description method is not specified in particular.

Data type: string

Omission: allowed

Example: Cesarean section

<mmlFcl:deliveryMethod>cesarean section</mmlFcl:deliveryMethod>

1.2.1.4.mmlFcl:bodyWeight

Description: body weight at birth

Data type: decimal

Omission: allowed

Attribute:

Attribute name

Data type

Omission

Remarks

mmlFcl:unit

string

#REQUIRED

Unit: g or kg

Example: 3,270 gram

<mmlFcl:bodyWeight mmlFcl:unit = "g">3270</mmlFcl:bodyWeight>

1.2.1.5.mmlFcl:bodyHeight

Description: body height at birth

Data type: decimal

Omission: allowed

Attribute:

Attribute name

Data type

Omission

Remarks

mmlFcl:unit

string

#REQUIRED

Unit: cm or m


1.2.1.6.mmlFcl:chestCircumference

Description: chest circumference at birth

Data type: decimal

Omission: allowed

Attribute:

Attribute name

Data type

Omission

Remarks

mmlFcl:unit

string

#REQUIRED

Unit: cm


1.2.1.7.mmlFcl:headCircumference

Description: head circumference at birth

Data type: decimal

Omission: allowed

Attribute:

Attribute name

Data type

Omission

Remarks

mmlFcl:unit

string

#REQUIRED

Unit: cm


1.2.1.8.mmlFcl:memo

Description: memo at birth

Data type: string

Omission: allowed

Document layout: use of XHTML is allowed.

1.2.2.mmlFcl:vaccination

Description: vaccination information

Omission: allowed

1.2.2.1.mmlFcl:vaccinationItem

Description: element for repetition

Omission: not allowed

Repetition: allowed. If multiple vaccination records are available, the element should be repeated.

1.2.2.1.1.mmlFcl:vaccine

Description: vaccine name

Data type: string

Omission: not allowed

1.2.2.1.2.mmlFcl:injected

Description: vaccination status. true: Vaccinated, false: Not vaccinated

Data type: boolean

Omission: not allowed

1.2.2.1.3.mmlFcl:age

Description: vaccination age

Data type: timePeriod Format: PnYnMnDTnHnMnS

Normally, PnYnM is acceptable.

Omission: allowed

1.2.2.1.4.mmlFcl:memo

Description: memo at vaccination

Data type: string

Omission: allowed

Document layout: use of XHTML is allowed.

Example: polio injection twice; at 6 months and 1 year and 6 months old.

<mmlFcl:vaccination>

<mmlFcl:vaccinationItem>

<mmlFcl:vaccine>polio</mmlFcl:vaccine>

<mmlFcl:injected>true</mmlFcl:injected>

<mmlFcl:age>P6M</mmlFcl:age>

<mmlFcl:memo>first administration</mmlFcl:memo>

</mmlFcl:vaccinationItem>

<mmlFcl:vaccinationItem>

<mmlFcl:vaccine>polio</mmlFcl:vaccine>

<mmlFcl:injected>true</mmlFcl:injected>

<mmlFcl:age>P1Y6M</mmlFcl:age>

<mmlFcl:memo>second administration</mmlFcl:memo>

</mmlFcl:vaccinationItem>

</mmlFcl:vaccination>

1.3.mmlFcl:pastHistory

Description: past history information. Select either the free style expression (mmlFcl:freeNotes) or time and event expressions (mmlFcl:timeExpression and mmlFcl:eventExpression).

Omission: allowed

1.3.1.mmlFcl:freeNotes

Description: free style expression

Data type: string

Omission: not allowed

Document layout: use of XHTML is allowed.

1.3.2.mmlFcl:pastHistoryItem

Description: element for repetition

Omission: allowed

Repetition: allowed. If multiple past history items are available, the element should be repeated.

1.3.2.1.mmlFcl:timeExpression

Description: time expression. The expression format is not defined in particular.

Data type: string

Omission: not allowed

1.3.2.2.mmlFcl:eventExpression

Description: corresponding event expression to time expression.

Data type: string

Omission: allowed

Repetition: allowed. If there are multiple event expressions for one time expression, the element should be repeated.

Document layout: use of XHTML is allowed.

Example: for past history information in the free style expression

<mmlFcl:pastHistory>

<mmlFcl:freeNotes>

Appendectomy (6 years old), hypertension (5 years ago)

</mmlFcl:freeNotes>

</mmlFcl:pastHistory>



Example: for past history information in the time and event expressions

<mmlFcl:pastHistory>

<mmlFcl:pastHistoryItem>

<mmlFcl:timeExpression>6 years old</mmlFcl:timeExpression>

<mmlFcl:eventExpression>appendectomy</mmlFcl:eventExpression>

</mmlFcl:pastHistoryItem>

<mmlFcl:pastHistoryItem>

<mmlFcl:timeExpression>5 years ago (1994)</mmlFcl:timeExpression>

<mmlFcl:eventExpression>hypertension</mmlFcl:eventExpression>

</mmlFcl:pastHistoryItem>

</mmlFcl:pastHistory>

1.4.mmlFcl:chiefComplaints

Description: chief complaint

Data type: string

Omission: allowed

Document layout: use of XHTML is allowed.

1.5.mmlFcl:presentIllnessNotes

Description: present illness in free style expression

Data type: string

Omission: allowed

Document layout: use of XHTML is allowed.
