11. 3. Diagnosis record information
module
Namespace declaration
Namespace declaration of this module is as follows.
xmlns:mmlRd="http://www.medxml.net/MML/ContentModule/RegisteredDiagnosis/1.0"

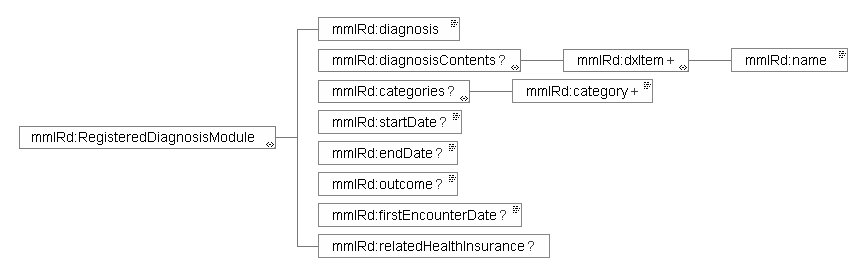

Element list
|
|
Element
|
Attribute
|
Datatypes
|
Occurrence
|
Table id
|
|
1.
|
mmlRd:RegisteredDiagnosisModule
|
|
|
|
|
|
1.1.
|
mmlRd:diagnosis
|
|
string
|
|
|
|
|
|
mmlRd:code
|
string
|
#IMPLIED
|
|
|
|
|
mmlRd:system
|
string
|
#IMPLIED
|
|
|
1.2.
|
mmlRd:diagnosisContents
|
|
|
?
|
|
|
1.2.1.
|
mmlRd:dxItem
|
|
|
+
|
|
|
1.2.2.
|
mmlRd:name
|
|
string
|
|
|
|
|
|
mmlRd:code
|
string
|
#IMPLIED
|
|
|
|
|
mmlRd:system
|
string
|
#IMPLIED
|
|
|
1.3.
|
mmlRd:categories
|
|
|
?
|
|
|
1.3.1.
|
mmlRd:category
|
|
string
|
+
|
optional
|
|
|
|
mmlRd:tableId
|
string
|
#REQUIRED
|
|
|
1.4.
|
mmlRd:startDate
|
|
date
|
?
|
|
|
1.5.
|
mmlRd:endDate
|
|
date
|
?
|
|
|
1.6.
|
mmlRd:outcome
|
|
string
|
?
|
MML0016
|
|
1.7.
|
mmlRd:firstEncounterDate
|
|
date
|
?
|
|
|
1.8.
|
mmlRd:relatedHealthInsurance
|
|
|
?
|
|
|
|
|
mmlRd:uid
|
string
|
#IMPLIED
|
|
Occurrence; blank: 1 appearance without fail, ?: 0 or 1 appearance, +: 1 or more appearances, *: 0 or more appearances
#REQUIRED: Required attribute, #IMPLIED: Omissible attribute
1.mmlRd:RegisteredDiagnosisModule
Description: diagnosis record information.
Enter only one disease name in one module. If there are multiple diseases,
<paragraph> should be repeated. Select either to enter a full disease
name including modifiers (1.1.) or enter a name divided into a main disease
part and modifiers (1.2.).
1.1.mmlRd:diagnosis
Description: disease name. A full
name including modifiers is stored.
Data type: string
Omission: not allowed
Attribute:
|
Attribute name
|
Data type
|
Omission
|
Remarks
|
|
mmlRd:code
|
string
|
#IMPLIED
|
Disease code
|
|
mmlRd:system
|
string
|
#IMPLIED
|
Disease code system name
|
Example: a case of colon carcinoid
(ICD10 code: C189-.006)
<mmlRd:diagnosis mmlRd:code = " C189-.006" mmlRd:system = "ICD10">colon carcinoid</mmlRd:diagnosis>
1.2.mmlRd:diagnosisContents
Description: a disease name divided
into the main disease and modifiers is stored. Select either one of the above
or this method.
Omission: allowed
1.2.1.mmlRd:dxItem
Description: element for repetition
Omission: not allowed
Repetition: allowed. The element should be repeated the same number of times as the number of elements.
1.2.2.mmlRd:name
Description: disease element name
Data type: string
Omission: not allowed
Attribute:
|
Attribute name
|
Data type
|
Omission
|
Remarks
|
|
mmlRd:code
|
string
|
#IMPLIED
|
Disease code
|
|
mmlRd:system
|
string
|
#IMPLIED
|
Disease code system name
|
Example: a case that paroxysmal
atrial fibrillation is described, separated into paroxysmal and atrial fibrillation.
<mmlRd:diagnosisContents>
<mmlRd:dxItem >
<mmlRd:name mmlRd:code = " I48--.004" mmlRd:system = "ICD10">
atrial fibrillation
</mmlRd:name>
</mmlRd:dxItem>
<mmlRd:dxItem >
<mmlRd:name>paroxysmal</mmlRd:name>
</mmlRd:dxItem>
</mmlRd:diagnosisContents>
1.3.mmlRd:categories
Description: category of diagnosis
Omission: allowed
1.3.1.mmlRd:category
Description: category name. Use
tables from MML0012 to MML0015. Specific operation methods of each category
is defined by users.
Data type: string
Omission: not allowed
Repetition: allowed. If multiple
categories are available, the element should be repeated.
Attribute:
|
Attribute name
|
Data type
|
Omission
|
Remarks
|
|
mmlRd:tableId
|
string
|
#REQUIRED
|
Category type code
|
Example: when the diagnosis is
a main diagnosis, academic diagnosis, pathological diagnosis and confirmed
diagnosis
<mmlRd:categories>
<mmlRd:category mmlRd:tableId = "MML0012">mainDiagnosis</mmlRd:category>
<mmlRd:category mmlRd:tableId = "MML0013">academicDiagnosis</mmlRd:category>
<mmlRd:category mmlRd:tableId = "MML0014">pathologicalDiagnosis</mmlRd:category>
<mmlRd:category mmlRd:tableId = "MML0015">confirmedDiagnosis</mmlRd:category>
</mmlRd:categories>
1.4.mmlRd:startDate
Description: start date of a disease
Data type: date èëéÆÅFCCYY-MM-DD
Omission: allowed
1.5.mmlRd:endDate
Description: end date of a disease
Data type: date Format: CCYY-MM-DD
Omission: allowed
1.6.mmlRd:outcome
Description: outcome. Use table
MML0016.
Data type: string
Omission: allowed
1.7.mmlRd:firstEncounterDate
Description: first visit date
Data type: date Format: CCYY-MM-DD
Omission: allowed
1.8.mmlRd:relatedHealthInsurance
Description: related health insurance
information. This is an empty tag. Enter the document uid of related health
insurance information in the attribute. This element is used only when the mmlRd:RegisteredDiagnosisModule
is used in the mmlSg:SurgeryModule or mmlSm:SummaryModule. When the mmlRd:RegisteredDiagnosisModule
is used as a single MML content, enter the document uid of related health insurance
information in the parentId (docInfo module).
Omission: allowed
Attribute:
|
Attribute name
|
Data type
|
Omission
|
Remarks
|
|
mmlRd:uid
|
string
|
#IMPLIED
|
Enter the uid of the mmlHi:HealthInsuranceModule
of the health insurance related to a disease.
|
Example:
<mmlRd:relatedHealthInsurance mmlRd:uid = "0aae5960-667c-11d3-9751-00105a6792e8"/>
